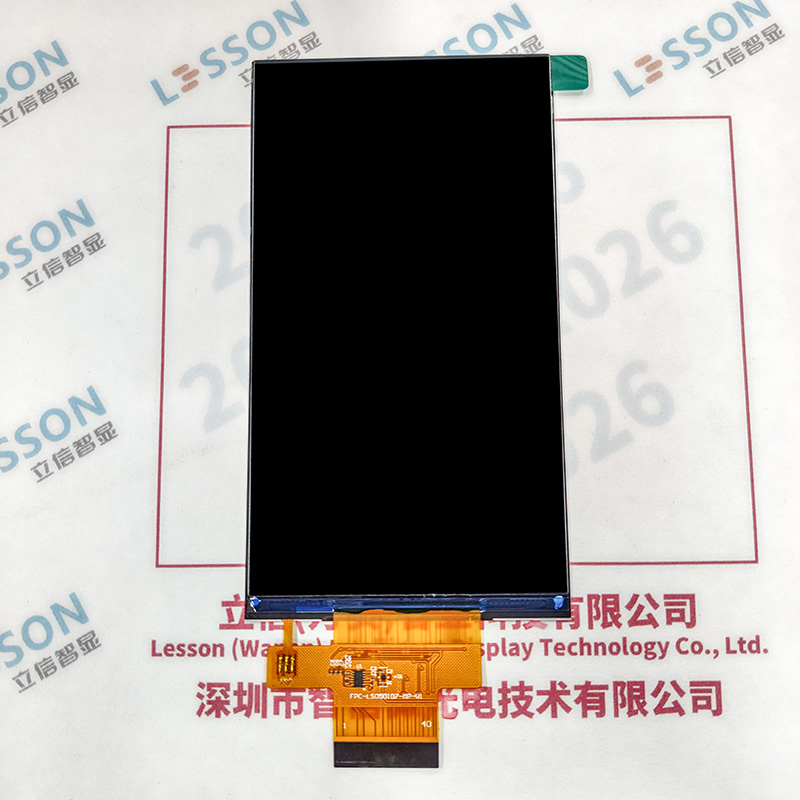

LS050I07-MP-V1 5inch TFT IPS 720x1280 Raspberry Pi MIPI
LS050I07-MP-V1 LCD Module Product Specification
Company Information
- Manufacturer: LESSON 立信(万安)智显科技有限公司
- English Name: Lesson Smart Display Technology Co., Ltd
1. General Description
LS050I07-MP-V1 is a transmissive type a-Si TFT-LCD (amorphous silicon thin film transistor liquid crystal display) module, which is composed of a TFT-LCD panel, a driver circuit and a backlight unit.
- Panel Size: 4.94 inch (diagonal)
- Resolution: 720(RGB) × 1280 pixels
- Display Colors: Up to 16.7M colors
2. Physical Features
- Display Mode: 16.7M Color TFT, Transmissive, Normally Black Mode
- Viewing Direction: All
- Drive IC: NV3051F
- Module Luminance (without CTP): 300 cd/m² (Typical)

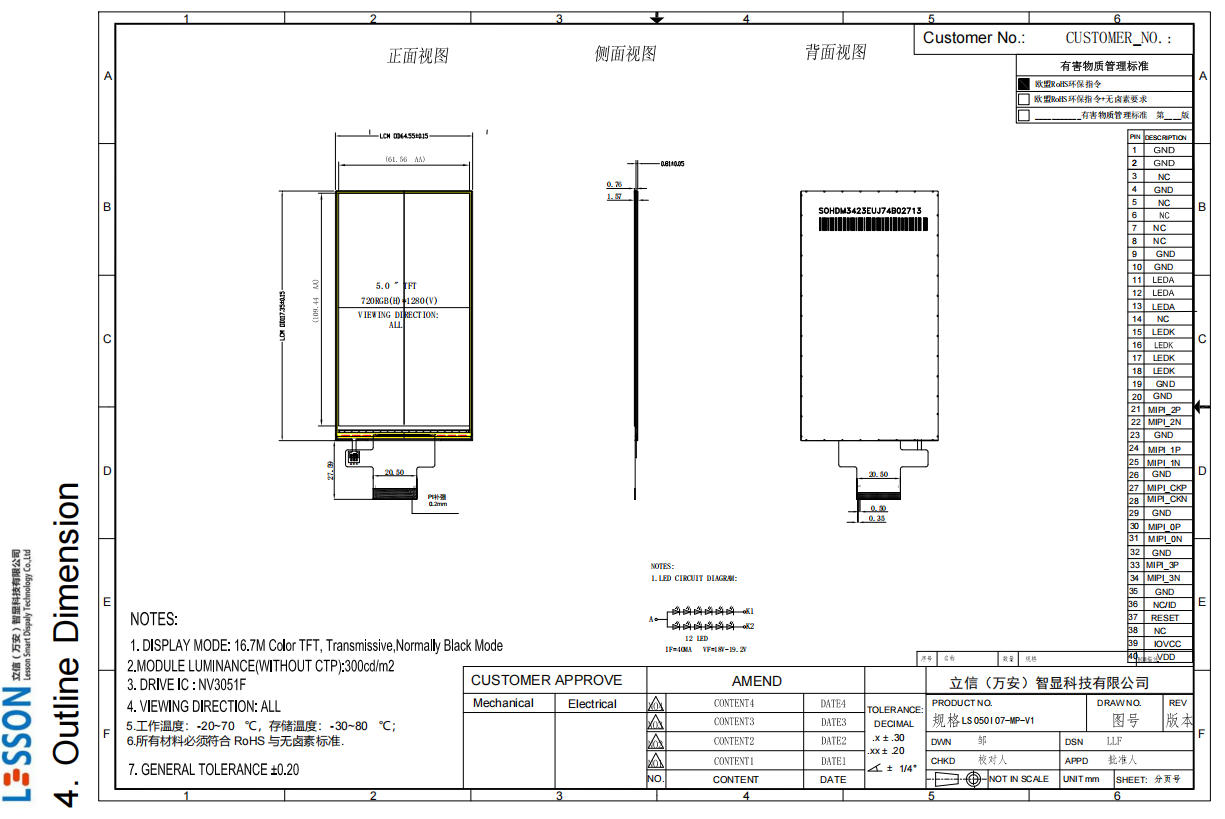

3. Mechanical Specification
| Item | Specification | Unit |
|---|---|---|
| Module Size (H×V×D) | 64.55 × 117.35 × 1.57 | mm |
| Active Area (H×V) | 61.56 × 109.44 | mm |
| Number of Dots | 720(RGB) × 1280 | pixel |
| General Tolerance | ±0.20 | mm |
4. Absolute Maximum Ratings
| Item | Symbol | Min | Max | Unit | Remark |
|---|---|---|---|---|---|
| Supply voltage | VCC | -0.3 | 6.6 | V | Note1, Note2 |
| Supply voltage | IOVCC | -0.3 | 4.5 | V | Note1, Note2 |
| Operating temperature | TOPR | -20 | 70 | °C | Note1, Note2 |
| Storage temperature | TSTR | -30 | 80 | °C | Note1, Note2 |
5. Electrical Characteristics (DC)
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| Supply voltage | VCC | 2.5 | 2.8 | 6.0 | V |
| Supply voltage | IOVCC | 1.65 | 1.8 | 3.6 | V |
| Input Voltage (L level) | VIL | 0 | --- | 0.3*IOVCC | V |
| Input Voltage (H level) | VIH | 0.7*IOVCC | --- | IOVCC | V |
6. MIPI-DSI Low Power Mode Timing Characteristics
| Parameter | Symbol | Description | Min | Max | Unit |
|---|---|---|---|---|---|
| Time that the HS clock shall be driven prior to any associated Data Lane beginning the transition from LP to HS mode | TCLK-PRE | 8 | - | UI | |
| Time to drive LP-00 to prepare for HS clock transmission | TCLK-PREPARE | 38 | 95 | ns | |
| Time to enable Clock Lane receiver line termination measured from when Dn crosses VIL(max) | TCLK-TERM-EN | Time for Dn to reach VTERM-EN | 38 | ns | |
| TCLK-PREPARE + time for lead HS-0 drive period before starting Clock | TCLK-PREPARE+TEK-ZERO | 300 | - | ns | |
| Time to drive HS differential state after last payload clock bit of a HS transmission burst | TCLK-TRAIL | 60 | - | ns |
7. Pin Description (Example from Pinout Diagram)
(Note: This is a partial list based on the provided pin diagram snippet. The complete list may vary.)
| Pin | Symbol | Description |
|---|---|---|
| 10 | MIPI_ON | MIPI Operation Control |
| 11 | RESET | Reset Signal |
| 12 | IOVCC | I/O Power Supply (1.8V) |
| 13 | NC/ID | No Connect / ID |
| 14, 15, 17, 20, 21, 24, 25, 28, 29, 32, 33, 36, 37, 40 | GND | Ground |
| 16, 18, 19 | LEDK | LED Backlight Cathode |
| 22, 23 | LEDA | LED Backlight Anode |
| 26, 27, 30, 31 | NC | No Connection |
| 34, 35 | LEDK | LED Backlight Cathode |
| 38, 39 | GND | Ground |
| 1-9 | MIPI Data/Clock Signals | MIPI_3P, MIPI_3N, MIPI_OP, MIPI_CKN, MIPI_CKP, MIPI_1N, MIPI_1P, MIPI_2N, MIPI_2P |
8. Backlight Information
- LED Circuit: 12 LEDs
- Forward Current (IF): 40 mA
- Forward Voltage (VF): 18V - 19.2V
9. Environmental & Material Standards
- Operating Temperature: -20°C ~ +70°C
- Storage Temperature: -30°C ~ +80°C
- All materials must comply with: RoHS and Halogen-Free standards.
10. Version Information
- Document Title: LS050I07-MP-V1(SPEC).pdf
- Revision: 1.0
- Upload Time: 2025-12-23 (Inferred from context)
- Module Type: COG+FPC+B/L
Important Notice:
This information is compiled from the provided document fragments. For complete and authoritative specifications, including detailed optical characteristics, reliability tests, and the final pinout diagram, please request the full product specification document from Lesson Smart Display Technology Co., Ltd.
